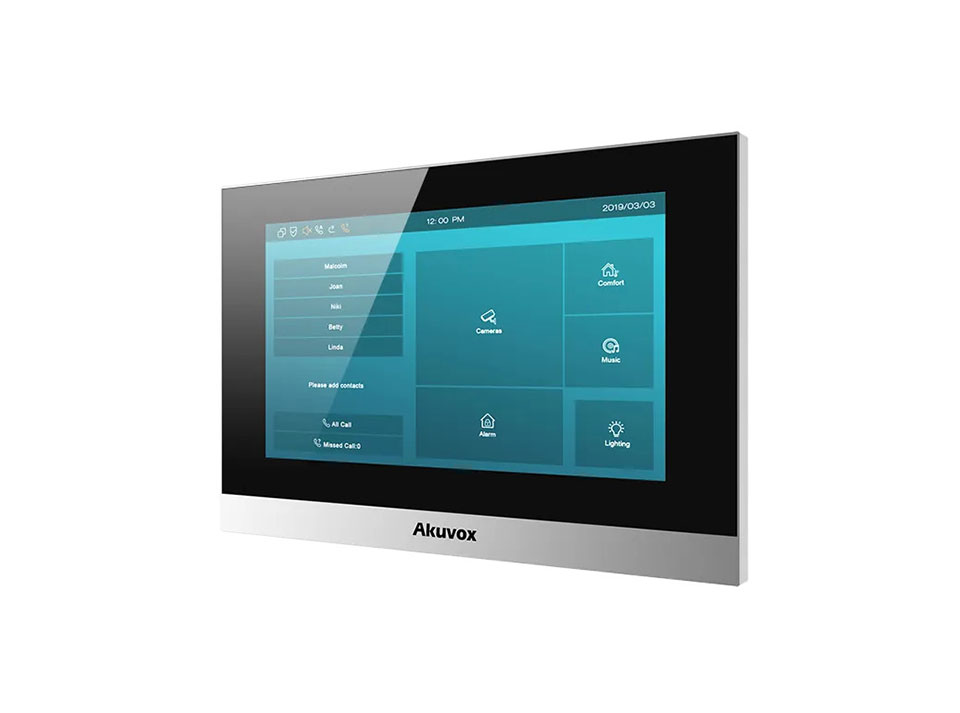

Akuvox C315W Smart Indoor Monitor:

Brand: Akuvox
Product Code: C315W
– Thin profile and small footprint
– 7-inch capacitive touch screen with energy saving mode
– Two-way audio communication with other units in the network
– Complies with SIP standard for easy integration in every SIP capable PBXes
– Powered by PoE or external source
– Support US or European electrical wall box mounting
– Front panel: Plastic
– RAM / ROM: 1GB / 8GB
– Display: 7 Inch TFT LCD
– Screen: 7 Inch capacitive touch screen
– Wi-Fi: IEEE802.11 b/g/n, @2.4GHz
– RS485 port: Support
– Relay out: 1
– Bell in: 1
– I/O: 8
– Microphone: -58dB
– Speaker: 4Ω / 2W
– Ethernet ports: 2xRJ45, 10/100Mbps adaptive
– 802.3af Power-over-Ethernet
– 12V DC connector (if not using PoE)
– Installation: Wall-mounted & Desktop
– Dimension: 200.2×132.2×27.2mm
– Working Humidity: 10~90%
– Working Temperature: -10°C ~ +45°C
– Working Humidity: 10~90%
– Storage Temperature: -20°C ~ +70°C
– Display Mode: Normally white, Transmissive
– LCD Size: 7inch (Diagonal)
– Resolution: 1024×600
– Contrast ratio: 800:1
– Luminance: 270 cd/m2
– Viewing Angle: 75° Left, 75° Right, 70° Upper, 75° Lower
– Touch Screen: Projected capacitive
– SIP v1 (RFC2543), SIP v2 (RFC3261)
– Narrowband audio codec: G.711a, G.711μ, G.729
– Broadband audio codec: G.722
– DTMF: In-band, out-of-band DTMF (RFC2833), SIP Info
– Echo Cancellation
– Voice Activation Detection
– Comfort Noise Generator
– Streaming formats: H.263 & H.264
– Protocols support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP
– Auto-Provisioning
– Web management portal
– Web-based packet dump
– Configuration backup / restore
-Firmware upgrade
– System logs (include door access logs)
– Villas
– Apartment complexes
– Home automation systems
– Modern interiors
– Stand Version + Wifi + Bluetooth
– Android + POE

Akuvox C315W -Datasheet -pdf
