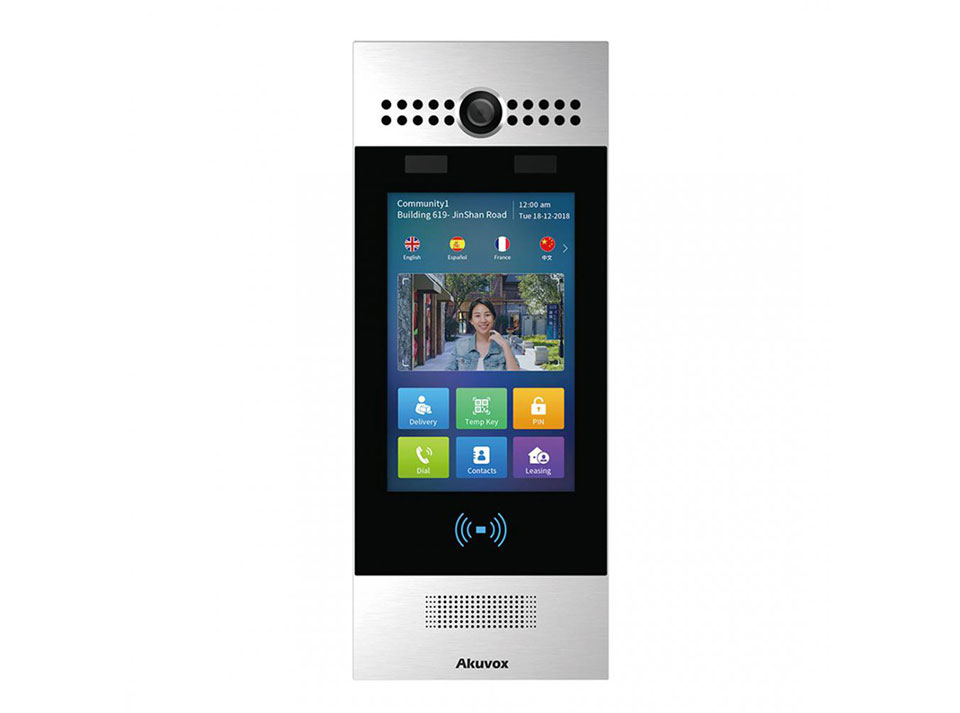

Akuvox R20A Smart Doorphones:

Brand: Akuvox
Product code: R29C
Enables audio and visual monitoring of doors/gates which increase security on residential or commercial premises
Dual camera for anti- counterfeit, completely solve all kinds of photos and video deception on various carries
Face verification accuracy >99.9%; face comparison speed <0.5s per person; false recognition rate <0.1%
Allows both audio and video communication to an IP phone, mobile client, or softphone
Enables the ability to remotely control the door/gate
Presents information and user navigation options unique to your business
Speeds response time to visitors, delivery and service personnel that require access
Front panel: Aluminum
RAM / ROM: 2GB / 16GB
Display: 7 Inch IPS LCD
Screen: 7 Inch capacitive touch screen
Main Camera: 3M pixels, automatic lighting
Auxiliary Camera: 1M pixels
Light sensor: Support
Infrared sensor: Support
Wiegand port: Support
RS485 port: Support
RF card reader: 13.56MHz & 125kHz
Relays ln/out: 3/3
Microphone: -32dB
Speaker: 8Ω / 2W
Bluetooth: Support
Ethernet port: RJ45, 10/100Mbps adaptive
802.3af Power-over-Ethernet
12V DC connector (if not using PoE)
IP/IK Level: IP65/ IK06
Installation: Flush-mounted or Wall-mounted
Flush-mounted DIM: 324x130x60mm
Wall-mounted DIM: 324x130x33mm
Working Humidity: 10 ~ 90%
Working Temperature: -20°C – +55°C
Storage Temperature: – 40°C~ + 70°C
SIP v1 (RFC2543), SIP v2 (RFC3261)
Narrowband audio codec: G.711a, G.711μ, G.729
Broadband audio codec: G.722
DTMF: In-band, out-of-band DTMF (RFC2833), SIP Info
Echo Cancellation
Voice Activation Detection
Comfort Noise Generator
Sensor: 1/3”, CMOS
Pixels: CIF, QCIF, VGA, 4CIF, 720p
Video codec: H.264
Video resolution: up to 1920x1080p
Max. image transfer rate: 1080p – 25fps
Viewing angle: 120*(H)/ 64°(V)
High intensity IR LEDs for picture lighting during dark hours with internal light sensor
White LEDs for QR code scanning
Compatible to 3rd-party video components
Protocols support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP
Android OS for any 3rd-party software or customization
Relays controlled individually by DTMF tones
Multi-way Unlock: Face, IC/ID Card, PIN and BLE
Camera permanently operational
Auto-night mode with LED illumination
White balance: auto
Minimum illumination: 0.1LUX
Auto-Provisioning
Web management portal
Web-based packet dump
Configuration backup / restore
Entry log export
Access table export / import
Firmware upgrade
System logs (include door access logs)
Office door phone with on-site or hosted IP-PBX
Remote site entry over Internet
Apartment/flat intercom with door access control
Business information or a welcome experience for guests
IP65 – ONVIf – POE – Android.

Akuvox R29C Datasheet _ pdf
